How to add a tooltip in OroCRM

Any application should be unambiguous. Every user should easily read and understand it. OroCRM applications contain many forms and fields. Developers can customize them and add even more, which can make the application difficult to use by other parties. The easiest way to avoid this is to add comments to the application elements: fields, forms etc. This can be done with tooltips in OroCRM. And we are going to show you how to do it.

In the following example we will use a Contact form entity. You can see the form in contact/create or contact/update/(id). You can use any of the forms but if you want to add some changes to a native Oro form, you first need to overwrite it. We have overwritten the OroCRMContact form and now can add tooltips to fields. Keep in mind, the native OroCRMContact form class is vendor/oro/crm/src/OroCRM/Bundle/ContactBundle/Form/Type/ContactType.php. We need to change the $builder->add() method.

Here is how you can add fields to the Oro form:

protected function buildPlainFields(FormBuilderInterface $builder, array $options)
{
   // basic plain fields
   $builder
       ->add('namePrefix', 'text', array('required' => false, 'label' => 'orocrm.contact.name_prefix.label'))
       ->add('firstName', 'text', array('required' => false, 'label' => 'orocrm.contact.first_name.label'))
       ->add('middleName', 'text', array('required' => false, 'label' => 'orocrm.contact.middle_name.label'))
       ->add('lastName', 'text', array('required' => false, 'label' => 'orocrm.contact.last_name.label'))
       ->add('nameSuffix', 'text', array('required' => false, 'label' => 'orocrm.contact.name_suffix.label'))
       ->add('gender', 'oro_gender', array('required' => false, 'label' => 'orocrm.contact.gender.label'))
       ->add('birthday', 'oro_date', array('required' => false, 'label' => 'orocrm.contact.birthday.label'))
       ->add(
           'description',
           'oro_resizeable_rich_text',
           array(
               'required' => false,
               'label' => 'orocrm.contact.description.label',
               'tooltip' => 'Test description'
           )
       );

   $builder
       ->add('jobTitle', 'text', array('required' => false, 'label' => 'orocrm.contact.job_title.label'))
       ->add('fax', 'text', array('required' => false, 'label' => 'orocrm.contact.fax.label'))
       ->add('skype', 'text', array('required' => false, 'label' => 'orocrm.contact.skype.label'));

   $builder
       ->add('twitter', 'text', array('required' => false, 'label' => 'orocrm.contact.twitter.label'))
       ->add('facebook', 'text', array('required' => false, 'label' => 'orocrm.contact.facebook.label'))
       ->add('googlePlus', 'text', array('required' => false, 'label' => 'orocrm.contact.google_plus.label'))
       ->add('linkedIn', 'text', array('required' => false, 'label' => 'orocrm.contact.linked_in.label'))
       ->add(
           'picture',
           'oro_image',
           array(
               'label'          => 'orocrm.contact.picture.label',
               'required'       => false
           )
       );
}

We can add tooltips to all the fields. But in this example we will add tooltips just to “firstName” and “lastName”.

protected function buildPlainFields(FormBuilderInterface $builder, array $options)
{
   // basic plain fields
   $builder
   ->add('namePrefix', 'text', array('required' => false, 'label' => 'orocrm.contact.name_prefix.label'))
   ->add('firstName', 'text',
       array(
           'required' => false,
           'label' => 'orocrm.contact.first_name.label',
           'tooltip' => 'Our tooltip for first name'
       ))
   ->add('middleName', 'text', array('required' => false, 'label' => 'orocrm.contact.middle_name.label'))
   ->add('lastName', 'text',
       array(
           'required' => false,
           'label' => 'orocrm.contact.last_name.label',
           'tooltip' => 'Our tooltip for last name'
       ))
   ->add('nameSuffix', 'text', array('required' => false, 'label' => 'orocrm.contact.name_suffix.label'))
   ->add('gender', 'oro_gender', array('required' => false, 'label' => 'orocrm.contact.gender.label'))
   ->add('birthday', 'oro_date', array('required' => false, 'label' => 'orocrm.contact.birthday.label'))
   ->add(
       'description',
       'oro_resizeable_rich_text',
       array(
           'required' => false,
           'label' => 'orocrm.contact.description.label'
       )
   );

   $builder
       ->add('jobTitle', 'text', array('required' => false, 'label' => 'orocrm.contact.job_title.label'))
       ->add('fax', 'text', array('required' => false, 'label' => 'orocrm.contact.fax.label'))
       ->add('skype', 'text', array('required' => false, 'label' => 'orocrm.contact.skype.label'));

   $builder
       ->add('twitter', 'text', array('required' => false, 'label' => 'orocrm.contact.twitter.label'))
       ->add('facebook', 'text', array('required' => false, 'label' => 'orocrm.contact.facebook.label'))
       ->add('googlePlus', 'text', array('required' => false, 'label' => 'orocrm.contact.google_plus.label'))
       ->add('linkedIn', 'text', array('required' => false, 'label' => 'orocrm.contact.linked_in.label'))
       ->add(
           'picture',
           'oro_image',
           array(
               'label'          => 'orocrm.contact.picture.label',
               'required'       => false
           )
       );
}

We added only one property to the builder and now we have tooltips for two fields.

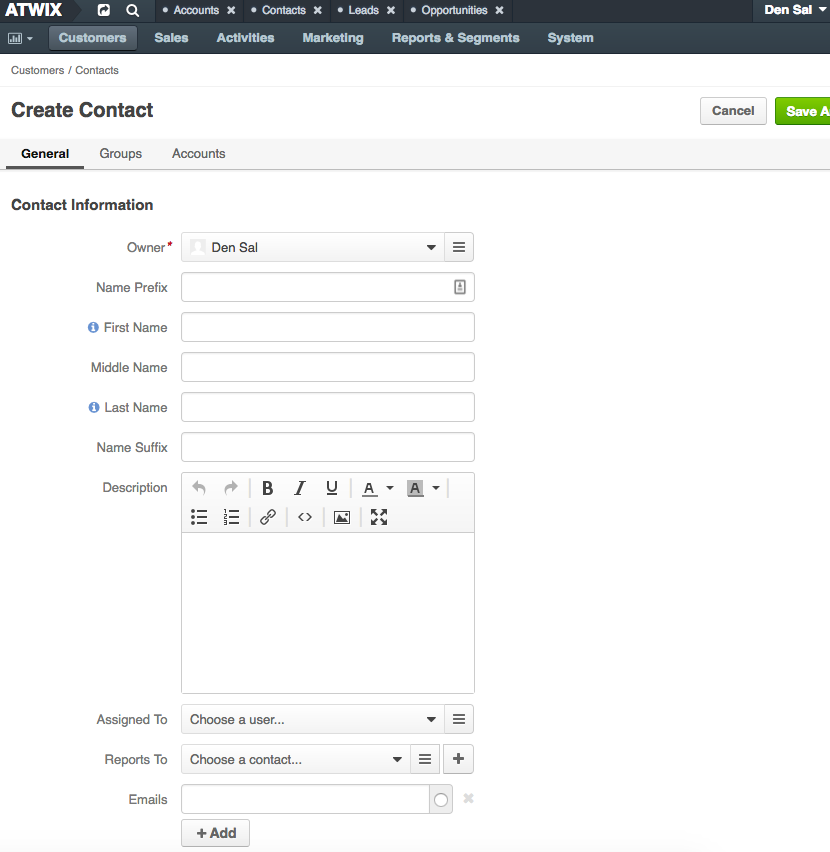

Create contact form screenshot

Here is the message of the tooltip:

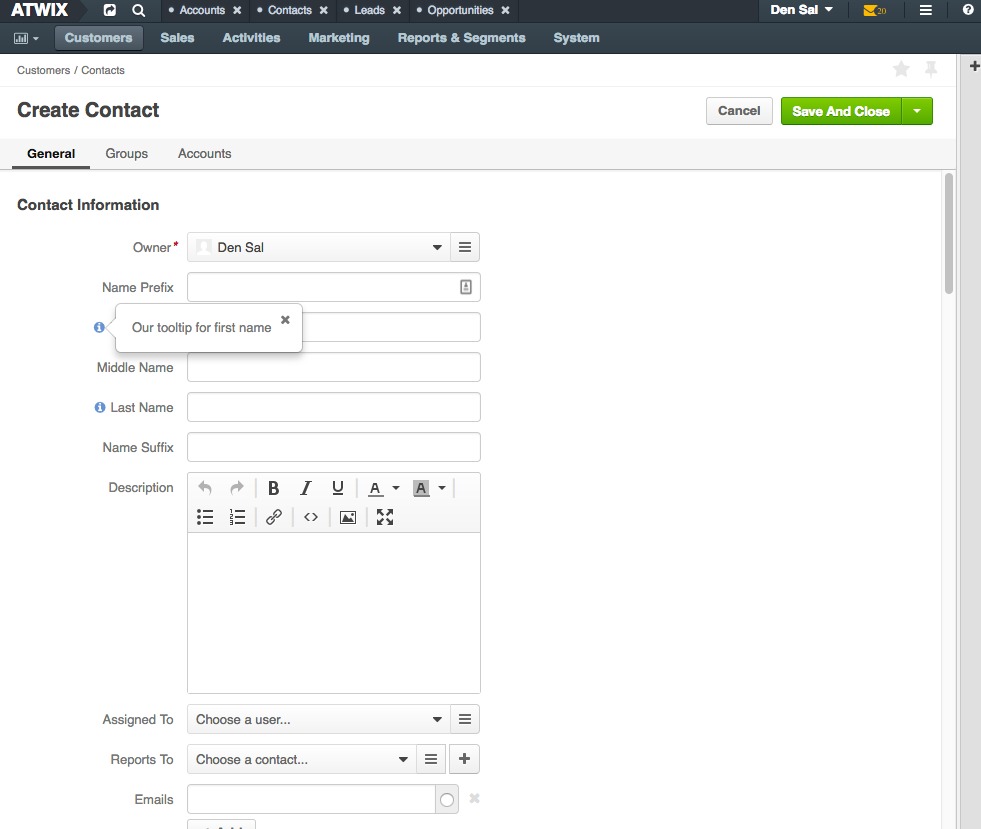

Create contact form screenshot with tooltips

We can also add tooltips to the other parts of the application like view action. For this we only need to add few lines to a twig template.

For example, we need to add a tooltip to the Contact view page for “Social” links. First, we need to overwrite the template and add some code. The template of the Contact info widget is located in vendor/oro/crm/src/OroCRM/Bundle/ContactBundle/Resources/views/Contact/widget/info.html.twig
We should add the code of our tooltip, set the twig variable with tooltip code and the label of the field.

{% set SocialBlockLabel %}
   <div class="control-group tooltip-title-block">
       <label class="control-label">
           {{ ui.tooltip('Social links', {}, 'bottom') }}
           {{ 'orocrm.contact.social.label'|trans }}
       </label>
   </div>
{% endset %}

Now we replace a string title with our twig variable “SocialBlockLabel”.

{{ ui.renderHtmlProperty('orocrm.contact.social.label'|trans, socialData) }}

To:

{{ ui.renderHtmlProperty(SocialBlockLabel, socialData) }}

Now we need to initialize the tooltip: we should add a JS script to the bottom of the template:

<script type="text/javascript">
   require(['jquery', 'oroui/js/layout'],
           function($, layout){
               layout.initPopover($('.tooltip-title-block'));
           });
</script>

Important: if you add tooltips to custom templates, make sure the templates contain:

{% import 'OroUIBundle::macros.html.twig' as ui %}

Here is the result of the template with our changes:

{% import 'OroUIBundle::macros.html.twig' as ui %}
{% import 'OroEntityConfigBundle::macros.html.twig' as entityConfig %}
{% import 'OroUserBundle::macros.html.twig' as U %}

{% macro renderCollectionWithPrimaryElement(collection, isEmail, entity) %}
   {% import 'OroUIBundle::macros.html.twig' as ui %}
   {% import 'OroEmailBundle::macros.html.twig' as email %}

   {% set primaryElement = null %}
   {% set elements = [] %}

   {% for element in collection %}
       {% if element.primary %}
           {% set primaryElement = element %}
       {% else %}
           {% set elements = elements|merge([element]) %}
       {% endif %}
   {% endfor %}
   {% if primaryElement %}
       {% set elements = [primaryElement]|merge(elements) %}
   {% endif %}

   <ul class="extra-list">
       {%- for element in elements %}
           <li class="contact-collection-element{% if element.primary %} primary{% endif %}">
               {% if isEmail %}
                   {{ email.renderEmailWithActions(element, entity) }}
               {% else %}
                   {{ ui.renderPhoneWithActions(element, entity) }}
               {% endif %}
           </li>
       {% endfor -%}
   </ul>
{% endmacro %}

{%- macro getSocialUrl(type, value) -%}
   {% if value|slice(0, 5) == 'http:' or value|slice(0, 6) == 'https:' %}
       {{ value }}
   {% else %}
       {{ oro_social_url(type, value) }}
   {% endif %}
{%- endmacro -%}

<div class="widget-content">
   <div class="row-fluid form-horizontal contact-info">
       <div class="responsive-block">
           {%- set skypeData -%}
               {%- if entity.skype -%}
                   {{ entity.skype }} {{ skype_button(entity.skype) }}
               {%- endif -%}
           {%- endset -%}

           {%- set socialData -%}
               {%- if entity.twitter or entity.facebook or entity.googlePlus or entity.linkedIn -%}
                   <ul class="list-inline">
                       {% if entity.twitter %}
                           <li>
                               <a class="no-hash" href="{{ _self.getSocialUrl('twitter', entity.twitter) }}" target="_blank" title="Twitter">
                                   <i class="icon-twitter"></i>
                               </a>
                           </li>
                       {% endif %}
                       {% if entity.facebook %}
                           <li>
                               <a class="no-hash" href="{{ _self.getSocialUrl('facebook', entity.facebook) }}" target="_blank" title="Facebook">
                                   <i class="icon-facebook"></i>
                               </a>
                           </li>
                       {% endif %}
                       {% if entity.googlePlus %}
                           <li>
                               <a class="no-hash" href="{{ _self.getSocialUrl('google_plus', entity.googlePlus) }}" target="_blank" title="Google+">
                                   <i class="icon-google-plus"></i>
                               </a>
                           </li>
                       {% endif %}
                       {% if entity.linkedIn %}
                           <li>
                               <a class="no-hash" href="{{ _self.getSocialUrl('linked_in', entity.linkedIn) }}" target="_blank" title="LinkedIn">
                                   <i class="icon-linkedin"></i>
                               </a>
                           </li>
                       {% endif %}
                   </ul>
               {%- endif -%}
           {%- endset -%}

           {% set SocialBlockLabel %}
               <div class="control-group tooltip-title-block">
                   <label class="control-label">
                       {{ ui.tooltip('Social links', {}, 'bottom') }}
                       {{ 'orocrm.contact.social.label'|trans }}
                   </label>
               </div>
           {% endset %}

           {{ ui.renderHtmlProperty('orocrm.contact.description.label'|trans, entity.description) }}
           {{ ui.renderHtmlProperty('orocrm.contact.phones.label'|trans, entity.phones.count ? _self.renderCollectionWithPrimaryElement(entity.phones, false, entity) : null) }}
           {{ ui.renderHtmlProperty('orocrm.contact.emails.label'|trans, entity.emails.count ? _self.renderCollectionWithPrimaryElement(entity.emails, true, entity) : null) }}
           {{ ui.renderHtmlProperty('orocrm.contact.fax.label'|trans, entity.fax ? ui.renderPhone(entity.fax) : null) }}
           {{ ui.renderHtmlProperty('orocrm.contact.skype.label'|trans, skypeData) }}
           {{ ui.renderProperty('orocrm.contact.method.label'|trans, entity.method) }}
           {{ ui.renderHtmlProperty(SocialBlockLabel, socialData) }}

           {{ entityConfig.renderDynamicFields(entity) }}
       </div>

       <div class="responsive-block">
           {%- set accountsData -%}
               {%- if entity.accounts.count -%}
                   {% set accountViewGranted = resource_granted('orocrm_account_view') %}
                   {%- for account in entity.accounts -%}
                       {%- if accountViewGranted -%}
                           <a href="{{ path('orocrm_account_view', {'id': account.id}) }}">{{ ui.renderEntityViewLabel(account, 'name', 'orocrm.account.entity_label') }}</a>
                       {%- else -%}
                           {{ ui.renderEntityViewLabel(account, 'name') }}
                       {%- endif -%}
                       {% if not loop.last %}, {% endif %}
                   {%- endfor -%}
               {%- endif -%}
           {%- endset -%}

           {%- set birthdayData -%}
               {{ entity.birthday is not empty ? entity.birthday|oro_format_date : null }}
               {% if entity.birthday is not empty %} ({{ entity.birthday|age_string({'default': 'N/A'}) }}){% endif %}
           {%- endset -%}

           {%- set assignedToData -%}
               {%- if entity.assignedTo -%}
                   {{ U.render_user_name(entity.assignedTo) }}
                   {{ U.user_business_unit_name(entity.assignedTo) }}
               {%- endif -%}
           {%- endset -%}

           {%- set reportsToData -%}
               {%- if entity.reportsTo -%}
                   <a href="{{ path('orocrm_contact_view', {'id': entity.reportsTo.id}) }}">
                       {{ entity.reportsTo }}
                   </a>
               {%- endif -%}
           {%- endset -%}

           {{ ui.renderProperty('orocrm.contact.job_title.label'|trans, entity.jobTitle) }}
           {{ ui.renderHtmlProperty('orocrm.contact.accounts.label'|trans, accountsData) }}
           {{ ui.renderProperty('orocrm.contact.birthday.label'|trans, entity.birthday ? birthdayData : null) }}
           {{ ui.renderProperty('orocrm.contact.gender.label'|trans, oro_gender(entity.gender)) }}
           {{ ui.renderProperty('orocrm.contact.source.label'|trans, entity.source) }}
           {{ ui.renderHtmlProperty('orocrm.contact.assigned_to.label'|trans, assignedToData) }}
           {{ ui.renderHtmlProperty('orocrm.contact.reports_to.label'|trans, reportsToData) }}
           {{ ui.renderProperty('orocrm.contact.groups.label'|trans, entity.groups.count ? entity.groupLabels|join(', ') : null) }}
       </div>
   </div>
</div>

<script type="text/javascript">
   require(['jquery', 'oroui/js/layout'],
           function($, layout){
               layout.initPopover($('.tooltip-title-block'));
           });
</script>

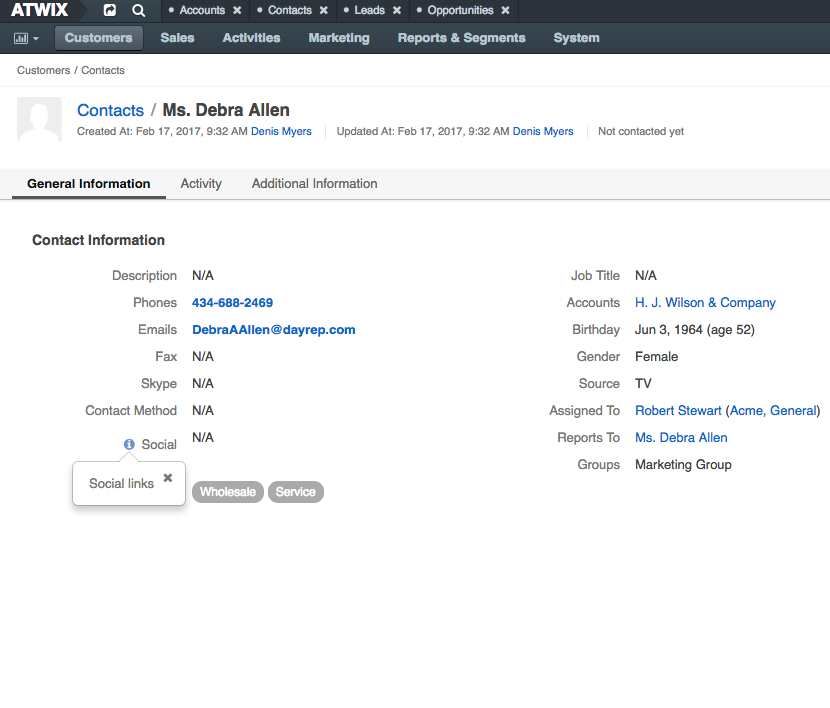

Contact view with social tooltip

We can also add tooltips to the forms of System config. For example, in the config/system/platform/tracking config we can see that each field has a tooltip. We can add tooltips to fields by simply adding a “tooltip” property to the system_configuration.yml file when we add a new config section. Like in this example in Tracking:

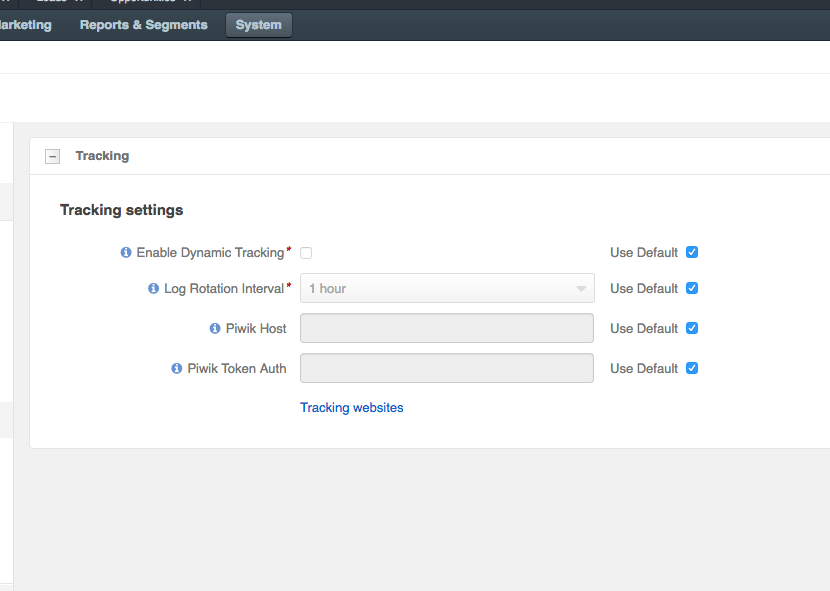

Tooltip configuration screenshot

File: vendor/oro/platform/src/Oro/Bundle/TrackingBundle/Resources/config/system_configuration.yml

oro_tracking.dynamic_tracking_enabled:
   data_type: boolean
   type: oro_config_checkbox
   priority: 50
   options:
       label: oro.tracking.system_configuration.fields.dynamic_tracking_enabled.label
       tooltip: oro.tracking.form.tooltip.dynamic_tracking_enabled
       required: true

Now you know that adding tooltips is very easy. You do not need custom javascript solutions for specific parts of the application. You only need to add few lines of code and clear cache afterwards. And this can ensure that your application is user-friendly.

Cookie	Duration	Description
__jid	1 day	Used to add comments to the website and remember the user's Disqus login credentials across websites that use said service.
cf_ob_info	past	The cf_ob_info cookie is set by Cloudflare to provide information on HTTP Status Code returned by the origin web server, the Ray ID of the original failed request and the data center serving the traffic.
cf_use_ob	past	Cloudflare sets this cookie to improve page load times and to disallow any security restrictions based on the visitor's IP address.
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
li_gc	2 years	Linkeding cookie that stores the user's cookie consent state for the current domain
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

Cookie	Duration	Description
_ga	2 years	Google Analytics cookie. Used to identify unique users and expires after two years
_gat	1 day	Used by Google Analytics to throttle request rate
_gid	24 hours	Google Analytics cookie. Used to identify user and expires in 24 hours.
_hjAbsoluteSessionInProgress	30 minutes	Hotjar cookie. Used to detect the first pageview session of a user. 30 minutes duration. Boolean true/false data type.
_hjFirstSeen	User session	Hotjar cookie. Identifies a new user’s first session. Used by Recording filters to identify new user sessions. Session duration. Boolean true/false data type.
_hjIncludedInPageviewSample	30 minutes	Hotjar cookie. Set to determine if a user is included in the data sampling defined by your site's pageview limit. 30 minutes duration. Boolean true/false data type.
_hjIncludedInSessionSample	30 minutes	Hotjar cookie. Set to determine if a user is included in the data sampling defined by your site's daily session limit. 30 minutes duration. Boolean true/false data type.
_hjRecordingLastActivity	User session	Hotjar cookie. Sets a unique ID for the session. This allows the website to obtain data on visitor behaviour for statistical purposes
_hjSession_2881021	30 minutes	Hotjar cookie. Holds current session data. Ensures subsequent requests in the session window are attributed to the same session. 30 minutes duration. JSON data type.
_hjSessionRejected	User session	Hotjar cookie. If present, set to '1' for the duration of a user's session, when Hotjar has rejected the session from connecting to our WebSocket due to server overload. Applied in extremely rare situations to prevent severe performance issues. Session duration. Boolean true/false data type.
_hjSessionUser_2881021	1 year	Hotjar cookie. Set when a user first lands on a page. Persists the Hotjar User ID which is unique to that site. Ensures data from subsequent visits to the same site are attributed to the same user ID. 365 days duration. JSON data type.
_hjTLDTest	User session	Hotjar cookie. Registers statistical data on users' behaviour on the website. Used for internal analytics by the website operator.
AnalyticsSyncHistory	29 days	Linkedin cookie. Used in connection with data-synchronization with third-party analysis service.
disqus_unique	1 year	Disqus cookie. Collects statistics related to the user's visits to the website, such as number of visits, average time spent on the website and loaded pages.
https://#.#/	User session	leadfeeder.com cookie. Registers statistical data on users' behaviour on the website. Used for internal analytics by the website operator.
juggler/event.gif	User session	Disqus cookie. Identifies the visitor across devices and visits, in order to optimize the chat-box function on the website.

Cookie	Duration	Description
aet-dismiss	User session	Disqus cookie. Necessary for the functionality of the website's comments system
drafts.queue		Disqus cookie. Necessary for the functionality of the website's comments system
lang		Linkedin cookie. Remembers the user's selected language version of a website
submitted_posts_cache	User session	Disqus cookie. Necessary for the functionality of the website's comments system

Cookie	Duration	Description
_hjRecordingEnabled	User session	Hotjar cookie. This cookie is used to identify the visitor and optimize ad-relevance by collecting visitor data from multiple websites – this exchange of visitor data is normally provided by a third-party data-center or ad-exchange.
_lfa	2 years	Leadfeeder cookie. Used to store and track audience reach and expires in 2 years.
_lfa_expiry	persistent	Leadfeeder cookie. : Contains the expiry-date for the cookie with corresponding name
_lfa_test_cookie_stored	1 day	Leadfeeder cookie. Used in context with Account-Based-Marketing (ABM). The cookie registers data such as IP-addresses, time spent on the website and page requests for the visit. This is used for retargeting of multiple users rooting from the same IP-addresses. ABM usually facilitates B2B marketing purposes
ads/ga-audiences	User session	Used by Google AdWords to re-engage visitors that are likely to convert to customers based on the visitor's online behaviour across websites.
badges-message	Persistent	Disqus cookie. Used for comments functionality
bcookie	2 years	Used by the social networking service, LinkedIn, for tracking the use of embedded services.
bscookie	2 years	Used by the social networking service, LinkedIn, for tracking the use of embedded services.
lidc	1 day	Used by the social networking service, LinkedIn, for tracking the use of embedded services.
UserMatchHistory	29 days	Linkedin cookie. Ensures visitor browsing-security by preventing cross-site request forgery. This cookie is essential for the security of the website and visitor.

How to add a tooltip in OroCRM

Subscribe to our newsletter.
